Cutting-Edge Technology for Chemical Equipment in Arizona

Welcome to Sun Fluoro System, Inc., where we leverage innovative technology to revolutionize chemical equipment. Our commitment to excellence drives us to continually develop and implement state-of-the-art solutions for our clients in Arizona and beyond.

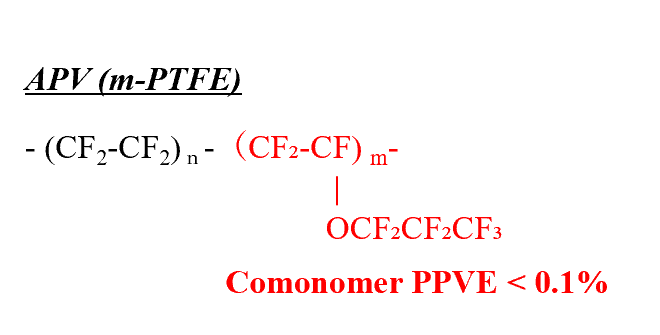

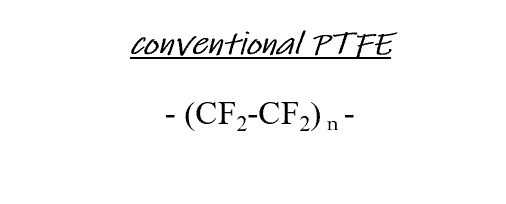

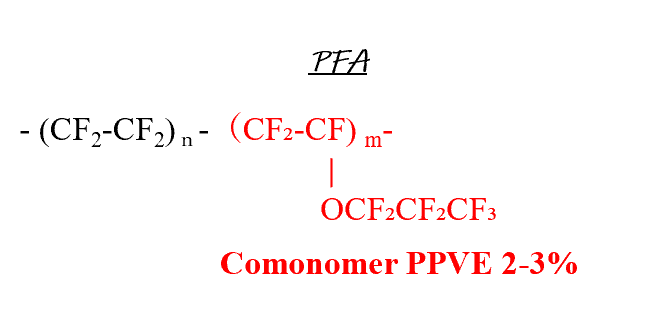

APV is made from modified PTFE (m-PTFE) powder. Thanks to its unique sintering and cooling process, APV has excellent surface smoothness and low chemical permeability which cannot be achieved with other PTFEs or PFA. By backing the unique m-PTFE sheet with specially woven glass cloth and by bonding the sheet to the steel tank with a special adhesive with rubber elasticity, APV achieves long-term durability without the sheet peeling even in harsh conditions.

Furthermore, our engineering technique significantly improves the material welding strength and reliability.

Surface smoothness

APV maintains the original smoothness of the fluoro resin surface by careful material selection and excellent production technology.

Low chemical permeability (98%HNO3)

To ensure superior performance, we conducted accelerated tests using 98percent concentrated nitric acid. We placed test tanks and panels outdoors to evaluate both material and construction quality.

After the immersion test for 1.5 years with two summers, APV performed exceptionally well maintaining excellent conditions. No abnormalities in the APV were found even after five years.

Bending Test

The use of specially woven, high-strength fiberglass is essential to the outstanding performance of fluoro resin lining materials.

During the curved surface processing, the stability of the lining construction will be compromised if the fiberglass is unable to adapt to changes in shape. In addition, the stability and adhesion of the curved surface of the lining depend on high-quality welding and lining techniques.

Tensile Strength Test

Even if the base material breaks, the welded spots are intact in an excellent condition.

The material broke at the welded spot. Durability is not reliable.
